13.1. Introduction#

There is a point where a serial version of our code is not the most optimal way to exploit our computational resources (but it might be in the case of embarrassingly parallel problems where you can just run several programs at once). For instance, you might want to use all the cores on your multicore system, ideally reducing the execution time, or you need to explore larger system sizes that could consume a lot of memory or need too much time.

Typically, Moore’s law allowed to wait for a bit in order to get a better machine so your algorithms will run faster.

https://ourworldindata.org/uploads/2020/11/Transistor-Count-over-time.png

But due to physics limitation and power considerations, it is now typical to have multicore systems

https://www.youtube.com/watch?v=Qlv5pB6u534 (The physics ending moore laws)

https://i.stack.imgur.com/fRJgk.png

Recently, power considerations are being more and more relevant:

At the same time, the computational problems size and/or complexity has been steadily increasing in time, requiring distributed computing techniques.

https://upload.wikimedia.org/wikipedia/commons/thumb/c/c6/Distributed-parallel.svg/600px-Distributed-parallel.svg.png

(see also https://en.wikipedia.org/wiki/Flynn’s_taxonomy?useskin=vector). Recently, besides CPU parallelization, the GPU parallelization has become very relevant (see https://en.wikipedia.org/wiki/General-purpose_computing_on_graphics_processing_units?useskin=vector ), where CUDA , OpenACC, and others, are the relevant technologies.

In our case, we will be more focused on the cluster computing aspect, while there are more HPC approaches, like grid computing, cloud computing, and so on. One of the goals of HPC is to get better results faster and/or to exploit better current or future resources.

https://upload.wikimedia.org/wikipedia/commons/thumb/d/d3/IBM_Blue_Gene_P_supercomputer.jpg/600px-IBM_Blue_Gene_P_supercomputer.jpg

13.2. Basics of parallel metrics#

But, as usual, you should always measure. All programs have a serial part that cannot be parallelized and a parallel part than can. Using more processors/threads can reduce only the parallel, so a 100% serial program cannot really take advantage of a parallel system. This is known as Amdahls law, https://en.wikipedia.org/wiki/Amdahl’s_law?useskin=vector

https://upload.wikimedia.org/wikipedia/commons/e/ea/AmdahlsLaw.svg

At the end, the user must also gauge its application performance. Blindly reserve of HPC resources represent a non efficient cluster use, and higher costs. In this regard, parallel metrics are really crucial. The next to figures show the speedup and the parallel efficiency. As you can see, they are limited by the hardware (and algorithms)

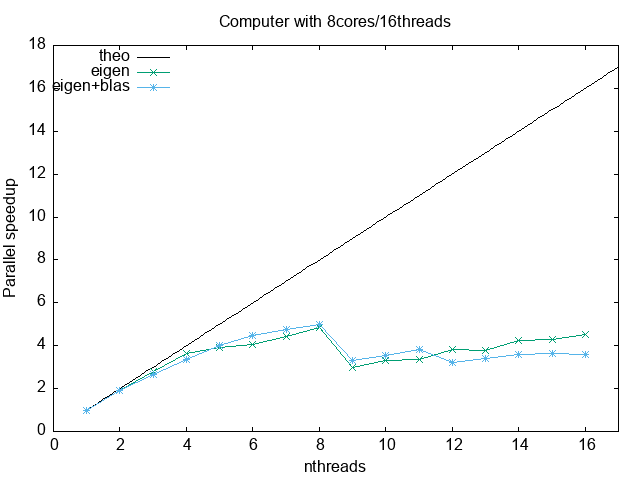

Speedup:

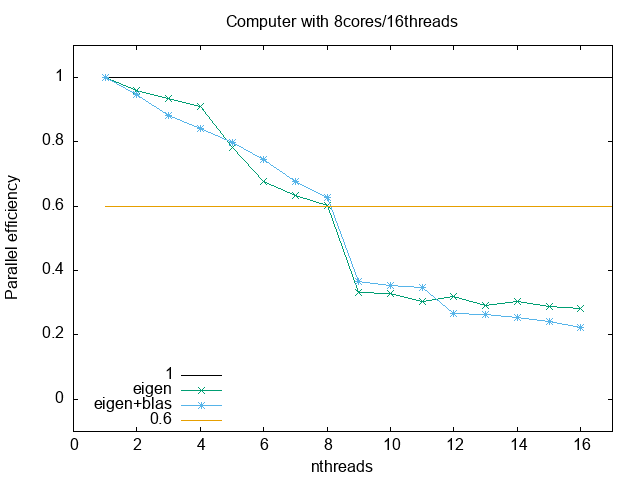

Parallel efficiency:

Rooftop model:

https://en.wikipedia.org/wiki/Roofline_model?useskin=vector

13.3. Practical overview of a cluster resources and use#

There are many aspects to take into account in the HPC field. If you are a user, you should know abount the type of parallelization (shared memory, disitributed memory, gpu programming), the type of hardware you are using, the resource manager, the data storage and so on. The goal of a system administrator is to make that easier, but that is not always possible. Check the 12-12-hkhlr_quick_reference-goethe-hlr (from https://csc.uni-frankfurt.de/wiki/doku.php?id=public:start) for an example of a typical cluster config and offerings.

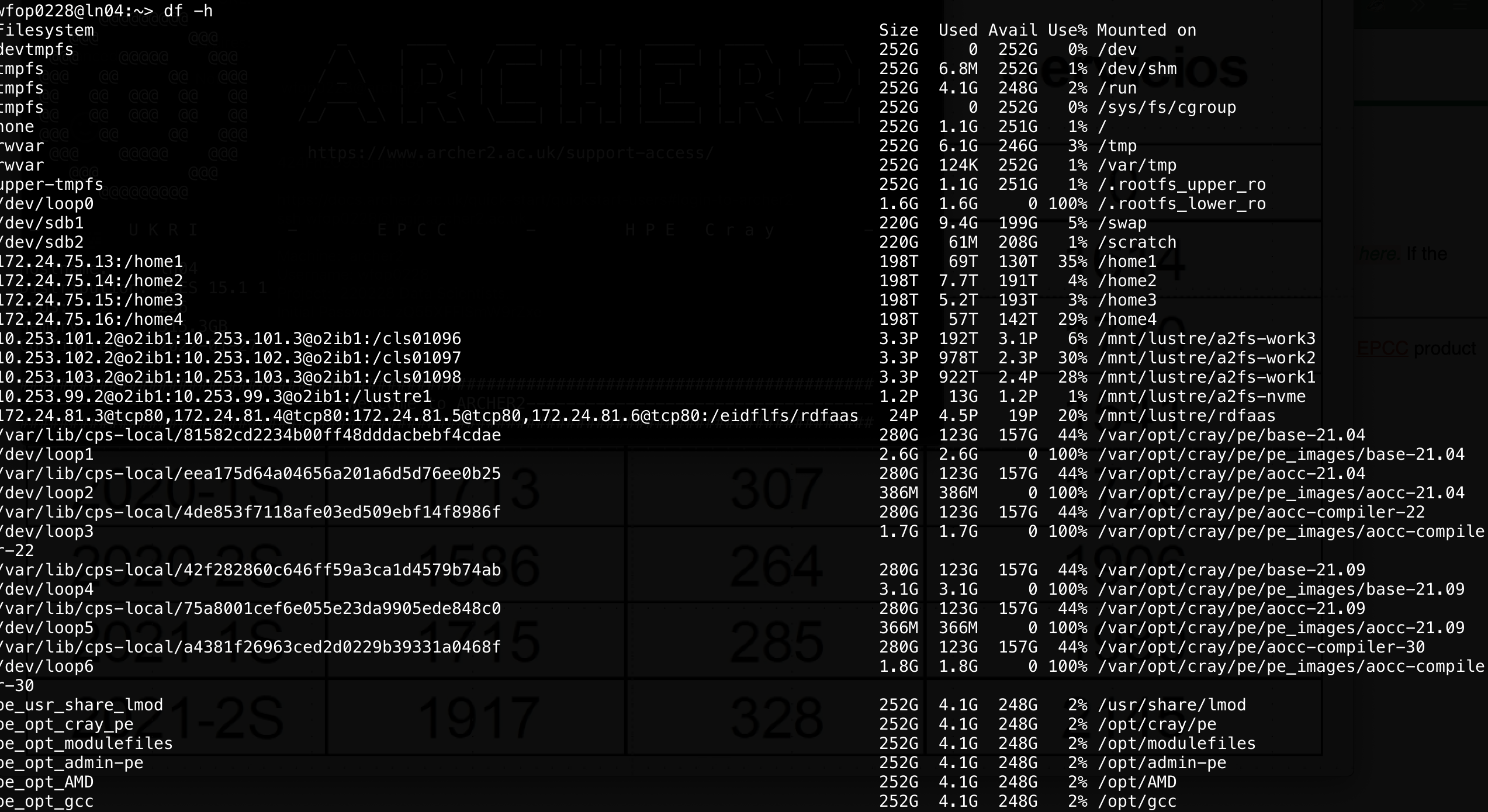

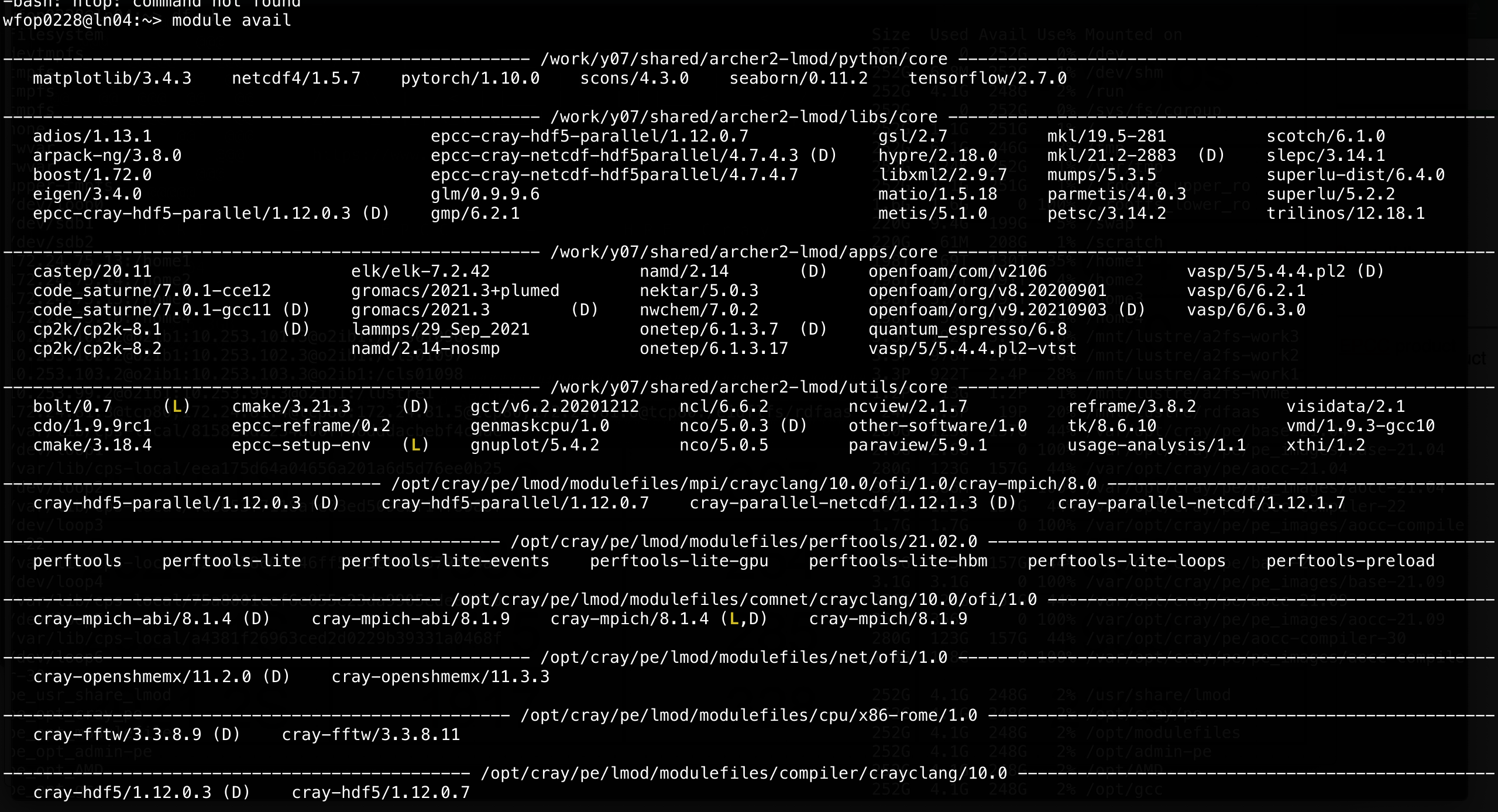

These are examples from the Archer cluster at https://www.archer2.ac.uk/

../_images/Archer1.png

In the following, we will see some basic examples for HPC, such us

Shared memory: with openmp
Distributed memory: using mpi
Multiple processes: using gnu parallel
C++ threads
TODO C++ parallel algorithms

Video: Introduction to shared and distributed memory: https://math-gpt.org/video/hls_4e3c1ffe-ee8e-49fb-a62d-a10615c0483d

Video: Introduction to gpu programming with cuda: https://math-gpt.org/video/hls_a9482f1a-7013-423e-ae0e-d4fd83edf997

13.4. Openmp, shared memory#

In the share memory paradigm, threads (lighweight processes without their own context) share or can “see” the same memory:

Here, a main process creates/destriys threads as needed

The following code shows a very simple parallelization using openmp, which allows tu share memory and run on several threads.

#include <iostream>
#include <omp.h>

int main(int argc, char *argv[]) {
  std::cout << "BEFORE\n";
#pragma omp parallel
  {
    std::cout << "Hola mundo\n";
  }
  std::cout << "AFTER\n";

  return 0;
}

To activate multi-threading, compile it as

g++ -fopenmp codes/openmp.cpp

To run it, you can control the number of threads using the environment variable OMP_NUM_THREADS:

g++ -fopenmp codes/openmp.cpp
echo "Running with 2 threads"
OMP_NUM_THREADS=2 ./a.out
echo "Running with 4 threads"
OMP_NUM_THREADS=4 ./a.out

13.4.1. Exercises#

Modify the previous exercise to identify the thread which is printing. Find a function to get the “thread id”.
Besides the thread id, print the number of threads and the hostname. Print the number of threads outside the parallel region. Does that make sense?

13.5. MPI, distributed memory#

MPI, the Message Passing Interface, is a library API that allows process to interchange data in a distributed memory context. It is more comple that openmp, but also opens the door to a greater scale since we can use many computers, increasing both our computational power and memory capacity (if done correctly and efficiently). See: https://www.mpi-forum.org/docs/

https://hpc-tutorials.llnl.gov/mpi/images/distributed_mem.gif

https://developer-blogs.nvidia.com/wp-content/uploads/2013/03/LaunchMPI1.png

The following shows the basic structure of a MPI program. It creates several processes that can communicate with each other, and can be run in multiple machines (for an introduction, see: https://mpitutorial.com/tutorials/mpi-introduction/)

#include <mpi.h>
#include <iostream>

int main(int argc, char** argv)
{
    // Initialize the MPI environment
    MPI_Init(&argc, &argv);

    // Get the number of processes
    int np;
    MPI_Comm_size(MPI_COMM_WORLD, &np);

    // Get the rank of the process
    int pid;
    MPI_Comm_rank(MPI_COMM_WORLD, &pid);

    // Get the name of the processor
    char processor_name[MPI_MAX_PROCESSOR_NAME];
    int name_len;
    MPI_Get_processor_name(processor_name, &name_len);

    // Print off a hello world message
    printf("Hello world from processor %s, rank %d out of %d processes\n",
           processor_name, pid, np);

    // Finalize the MPI environment.
    MPI_Finalize();
}

You can compile it as

mpic++  mpi.cpp

(If you want to see all the flags, use mpic++ --showme)

And now run it as

mpirun -np 4 ./a.out

You can also specifiy different machines to run on, but you will need to have configured passwordless access to those machines. Or better, use slurm .

13.5.1. Exercises#

Run on two nodes the same process
Interchange some message between the two nodes: use MPI_Send and MPI_Recv.

13.6. Parallelism in python#

Also :

13.7. Threads from c++11#

The c++11 standard included, among many other usefull things, the use a thread. A thread is a lightweight process that can be launched in parallel with other threads from a parent process. In the following we will see some very simple examples since at the end we will focus mainly on OpenMP (where threads are the key and the memory is shared) and MPI (where processes are the basic unit and memory is distributed).

The following example are based on

The following example shows how to create a thread from a given process, and its output:

#include <iostream>
#include <thread>

void func(int x);

int main(int argc, char **argv) {
    std::thread th1(&func, 100);
    std::thread th2(&func, 200);
    th1.join();
    std::cout << "Outside thread" << std::endl;
    th2.join();
    return 0;
}

void func(int x) {
    std::cout << "Inside thread " << x << std::endl;
    std::thread::id this_id = std::this_thread::get_id();
    std::cout << "This is thread_id: " << this_id << std::endl;
}

Compile it as

g++ -std=c++11 thread-v1.cpp

The folowwing is an example of the output:


Inside	thread	Inside	thread	100200

This	is	thread_id:	This	is	thread_id:	0x700003c34000
0x700003cb7000
Outside	thread

Run it several times, you will obtain different outputs, many times they will be mangled. Why? because the threads are running in parallel and their output is not independent of each other, not synced.

To check that we are really running two threads, let’s increase the computational effort inside function func and then, while the program is running, use top or htop to check what is running on your computer. Notice that the cpu use percentage is around 200%:

#include <iostream>
#include <thread>
#include <chrono>
#include <cmath>

void func(double x, int nsecs);

int main(int argc, char **argv) {
    const int secs = std::atoi(argv[1]);
    std::thread th1(&func, 100, secs);
    std::thread th2(&func, 200, secs);
    std::thread th3(&func, 300, secs);
    th1.join();
    std::cout << "Outside thread" << std::endl;
    th2.join();
    th3.join();
    return 0;
}

void func(double x, int nsecs) {
    std::cout << "Inside thread " << x << std::endl;
    std::this_thread::sleep_for (std::chrono::seconds(nsecs)); // make this sleep, does not consume a lot of resources
    for (int ii = 0; ii < 100000000; ++ii) {
        x += std::fabs(x*std::sin(x) + std::sqrt(x)/3.4455)/(ii+1);
    }
    std::cout << "Getting out of thread " << x << std::endl;
}

The following is an example of the output:


Inside	thread	Inside	thread	100
200
Getting	out	of	thread	9387820000.0
Outside	thread
Getting	out	of	thread	18849600000.0

To synchronize threads, you can use a mutex. This is useful in case you need to sort out the printing, or, more importantly, to syncrhonize a writing operation on some common variable. The following is a simple example:

#include <iostream>
#include <thread>
#include <chrono>
#include <mutex>

std::mutex g_display_mutex;

void foo()
{
    std::thread::id this_id = std::this_thread::get_id();

    g_display_mutex.lock();
    std::cout << "thread " << this_id << " sleeping...\n";
    g_display_mutex.unlock();

    std::this_thread::sleep_for(std::chrono::seconds(1));
}

int main()
{
    std::thread t1(foo);
    std::thread t2(foo);

    t1.join();
    t2.join();

    return 0;
}


thread	0x70000709a000	sleeping…
thread	0x70000711d000	sleeping…

Repeat several times. Although the thread id will change, the output will not be mangled.

There is much more about threads, but since our focus will turn to OpenMP, we will stop here. For more info check https://en.cppreference.com/w/cpp/thread/thread

13.7.1. Exercise#

Fix the following code, which has a race condition, using a mutex (ref: https://www.classes.cs.uchicago.edu/archive/2013/spring/12300-1/labs/lab6/) :

#include <iostream>
#include <vector>
#include <thread>

void square(const int x, int & result);

int main() {
    int accum = 0;
    std::vector<std::thread> ths;
    for (int i = 1; i <= 20; i++) {
        ths.push_back(std::thread(&square, i, std::ref(accum)));
    }

    for (auto & th : ths) {
        th.join();
    }
    std::cout << "accum = " << accum << std::endl;
    return 0;
}

void square(int x, int &result) {
    result += x * x;
}

accum = 2870

The correct answer is 2870, but if you repeat the execution many times you will find different results. For instance, repeating the execution 1000 times and checking for the unique answers one gets

for i in {1..1000}; do ./a.out; done | sort | uniq -c

accum = 2509
accum = 2674
accum = 2749
accum = 2806
accum = 2834
accum = 2845
accum = 2854
accum = 2861
accum = 2866
accum = 2869
accum = 2870

which shows that it not always yield 2870 .

13.8. Parallel algorithms in c++#

Since c++17, it is possible to execute some stl algorithms in parallel (shared memory), without explictly using threads. See:

This a simple example for performing a sum

#include <iostream>
#include <algorithm>
#include <numeric>
#include <vector>
#include <execution>

int main() {
    const long ARRAY_SIZE = 100000000;
    std::vector<double> myArray(ARRAY_SIZE);
    std::iota(myArray.begin(), myArray.end(), 0); // fill array with 0, 1, 2, ..., ARRAY_SIZE-1

    // sequential execution
    auto sum_seq = std::accumulate(myArray.begin(), myArray.end(), 0.0);
    std::cout << "Sequential sum: " << sum_seq << std::endl;

    // parallel execution
    auto sum_par = std::reduce(std::execution::par, myArray.begin(), myArray.end());
    std::cout << "Parallel sum: " << sum_par << std::endl;

    return 0;
}

To compile, use

g++ -std=c++17 par.cpp -ltbb

This is linking with an intel threads implementation.

You can of course measure how much time is spent on each part. To do so, we will use chrono:

Implementation 1:

#include <iostream>
#include <algorithm>
#include <numeric>
#include <vector>
#include <execution>

int main() {
    const long ARRAY_SIZE = 100000000;
    std::vector<double> myArray(ARRAY_SIZE);
    std::iota(myArray.begin(), myArray.end(), 0); // fill array with 0, 1, 2, ..., ARRAY_SIZE-1

    // sequential execution
    auto start_time = std::chrono::high_resolution_clock::now();
    auto sum_seq = std::accumulate(myArray.begin(), myArray.end(), 0.0);
    auto end_time = std::chrono::high_resolution_clock::now();
    auto seq_duration = std::chrono::duration_cast<std::chrono::milliseconds>(end_time - start_time);
    std::cout << "Sequential sum: " << sum_seq << "( took : " << seq_duration.count()/1000.0 << " s)" << std::endl;

    // parallel execution
    start_time = std::chrono::high_resolution_clock::now();
    auto sum_par = std::reduce(std::execution::par, myArray.begin(), myArray.end());
    end_time = std::chrono::high_resolution_clock::now();
    seq_duration = std::chrono::duration_cast<std::chrono::milliseconds>(end_time - start_time);
    std::cout << "Parallel sum: " << sum_par << "( took : " << seq_duration.count()/1000.0 << " s)" << std::endl;

    return 0;
}

Implementation 2:

#include <iostream>
#include <algorithm>
#include <numeric>
#include <vector>
#include <execution>
#include <chrono>

template<typename Func>
void time_function(Func func);

int main() {
  const long ARRAY_SIZE = 100000000;
  std::vector<double> myArray(ARRAY_SIZE);
  std::iota(myArray.begin(), myArray.end(), 0); // fill array with 0, 1, 2, ..., ARRAY_SIZE-1

  // sequential execution
  auto serial = [&myArray](){return std::accumulate(myArray.begin(), myArray.end(), 0.0);};
  time_function(serial);

  // parallel execution
  auto parallel = [&myArray](){return std::reduce(std::execution::par, myArray.begin(), myArray.end());};
  time_function(parallel);

  return 0;
}

template<typename Func>
void time_function(Func func) {
  auto start = std::chrono::high_resolution_clock::now();
  func();
  auto end = std::chrono::high_resolution_clock::now();
  auto duration_ms = std::chrono::duration_cast<std::chrono::milliseconds>(end - start).count();
  std::cout << "Elapsed time: " << duration_ms/1000.0 << "  s" << std::endl;
}

The standard does not specify a way to control the nuber tof threads. If you want to do so, and you are using Intel Threads Block implementation, you can add gthe following header
