Introduction#

The SciPy framework builds on top of the low-level NumPy framework for multidimensional arrays, and provides a large number of higher-level scientific algorithms. Some of the topics that SciPy covers are:

Special functions (scipy.special)
Integration (scipy.integrate)
Optimization (scipy.optimize)
Interpolation (scipy.interpolate)
Fourier Transforms (scipy.fftpack)
Signal Processing (scipy.signal)
Linear Algebra (scipy.linalg)
Sparse Eigenvalue Problems (scipy.sparse)
Statistics (scipy.stats)
Multi-dimensional image processing (scipy.ndimage)
File IO (scipy.io)

Each of these submodules provides a number of functions and classes that can be used to solve problems in their respective topics.

In this lecture we will look at how to use some of these subpackages.

To access the SciPy package in a Python program, we start by importing everything from the scipy module.

import scipy as sp

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[2], line 1
----> 1 import scipy as sp

ModuleNotFoundError: No module named 'scipy'

Special functions#

A large number of mathematical special functions are important for many computional physics problems. SciPy provides implementations of a very extensive set of special functions. For details, see the list of functions in the reference documention at http://docs.scipy.org/doc/scipy/reference/special.html#module-scipy.special.

To demonstrate the typical usage of special functions we will look in more detail at the Bessel functions:

#
# The scipy.special module includes a large number of Bessel-functions
# Here we will use the functions jn and yn, which are the Bessel functions
# of the first and second kind and real-valued order. We also include the
# function jn_zeros and yn_zeros that gives the zeroes of the functions jn
# and yn.
#
from scipy.special import jn, yn, jn_zeros, yn_zeros

n = 0    # order
x = 0.0

# Bessel function of first kind
print "J_%d(%f) = %f" % (n, x, jn(n, x))

x = 1.0
# Bessel function of second kind
print "Y_%d(%f) = %f" % (n, x, yn(n, x))

x = np.linspace(0, 10, 100)

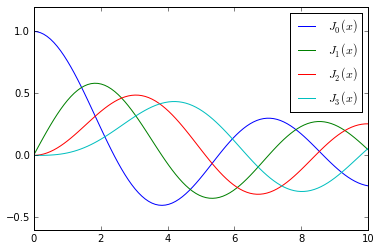

fig, ax = plt.subplots()
for n in range(4):
    ax.plot(x, jn(n, x), label=r"$J_%d(x)$" % n)
ax.legend();

# zeros of Bessel functions
n = 0 # order
m = 4 # number of roots to compute
jn_zeros(n, m)

Integration#

Numerical integration: quadrature#

Numerical evaluation of a function of the type

\(\displaystyle \int_a^b f(x) dx\)

is called numerical quadrature, or simply quadature. SciPy provides a series of functions for different kind of quadrature, for example the quad, dblquad and tplquad for single, double and triple integrals, respectively.

from scipy.integrate import quad, dblquad, tplquad

The quad function takes a large number of optional arguments, which can be used to fine-tune the behaviour of the function (try help(quad) for details).

The basic usage is as follows:

# define a simple function for the integrand
def f(x):
    return x

x_lower = 0 # the lower limit of x
x_upper = 1 # the upper limit of x

val, abserr = quad(f, x_lower, x_upper)

print "integral value =", val, ", absolute error =", abserr

If we need to pass extra arguments to integrand function we can use the args keyword argument:

def integrand(x, n):
    """
    Bessel function of first kind and order n.
    """
    return jn(n, x)


x_lower = 0  # the lower limit of x
x_upper = 10 # the upper limit of x

val, abserr = quad(integrand, x_lower, x_upper, args=(3,))

print val, abserr

For simple functions we can use a lambda function (name-less function) instead of explicitly defining a function for the integrand:

val, abserr = quad(lambda x: np.exp(-x ** 2), -np.Inf, np.Inf)

print "numerical  =", val, abserr

analytical = np.sqrt(np.pi)
print "analytical =", analytical

As show in the example above, we can also use ‘Inf’ or ‘-Inf’ as integral limits.

Higher-dimensional integration works in the same way:

def integrand(x, y):
    return exp(-x**2-y**2)

x_lower = 0
x_upper = 10
y_lower = 0
y_upper = 10

val, abserr = dblquad(integrand, x_lower, x_upper, lambda x : y_lower, lambda x: y_upper)

print val, abserr

Note how we had to pass lambda functions for the limits for the y integration, since these in general can be functions of x.

Ordinary differential equations (ODEs)#

SciPy provides two different ways to solve ODEs: An API based on the function odeint, and object-oriented API based on the class ode. Usually odeint is easier to get started with, but the ode class offers some finer level of control.

Here we will use the odeint functions. For more information about the class ode, try help(ode). It does pretty much the same thing as odeint, but in an object-oriented fashion.

To use odeint, first import it from the scipy.integrate module

from scipy.integrate import odeint, ode

A system of ODEs are usually formulated on standard form before it is attacked numerically. The standard form is:

\(y' = f(y, t)\)

where

\(y = [y_1(t), y_2(t), ..., y_n(t)]\)

and \(f\) is some function that gives the derivatives of the function \(y_i(t)\). To solve an ODE we need to know the function \(f\) and an initial condition, \(y(0)\).

Note that higher-order ODEs can always be written in this form by introducing new variables for the intermediate derivatives.

Once we have defined the Python function f and array y_0 (that is \(f\) and \(y(0)\) in the mathematical formulation), we can use the odeint function as:

y_t = odeint(f, y_0, t)

where t is and array with time-coordinates for which to solve the ODE problem. y_t is an array with one row for each point in time in t, where each column corresponds to a solution y_i(t) at that point in time.

We will see how we can implement f and y_0 in Python code in the examples below.

Example: Damped harmonic oscillator#

ODE problems are important in computational physics, so we will look at one more example: the damped harmonic oscillation. This problem is well described on the wiki page: http://en.wikipedia.org/wiki/Damping

The equation of motion for the damped oscillator is:

\(\displaystyle \frac{\mathrm{d}^2x}{\mathrm{d}t^2} + 2\zeta\omega_0\frac{\mathrm{d}x}{\mathrm{d}t} + \omega^2_0 x = 0\)

where \(x\) is the position of the oscillator, \(\omega_0\) is the frequency, and \(\zeta\) is the damping ratio. To write this second-order ODE on standard form we introduce \(p = \frac{\mathrm{d}x}{\mathrm{d}t}\):

\(\displaystyle \frac{\mathrm{d}p}{\mathrm{d}t} = - 2\zeta\omega_0 p - \omega^2_0 x\)

\(\displaystyle \frac{\mathrm{d}x}{\mathrm{d}t} = p\)

In the implementation of this example we will add extra arguments to the RHS function for the ODE, rather than using global variables as we did in the previous example. As a consequence of the extra arguments to the RHS, we need to pass an keyword argument args to the odeint function:

def dy(y, t, zeta, w0):
    """
    The right-hand side of the damped oscillator ODE
    """
    x, p = y[0], y[1]

    dx = p
    dp = -2 * zeta * w0 * p - w0**2 * x

    return [dx, dp]

# initial state:
y0 = [1.0, 0.0]

# time coodinate to solve the ODE for
t = np.linspace(0, 10, 1000)
w0 = 2*np.pi*1.0

# solve the ODE problem for three different values of the damping ratio

y1 = odeint(dy, y0, t, args=(0.0, w0)) # undamped
y2 = odeint(dy, y0, t, args=(0.2, w0)) # under damped
y3 = odeint(dy, y0, t, args=(1.0, w0)) # critial damping
y4 = odeint(dy, y0, t, args=(5.0, w0)) # over damped

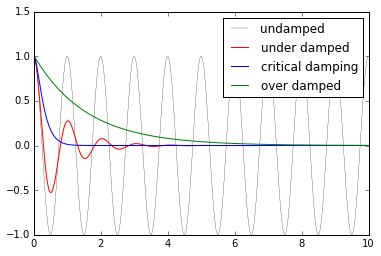

fig, ax = plt.subplots()
ax.plot(t, y1[:,0], 'k', label="undamped", linewidth=0.25)
ax.plot(t, y2[:,0], 'r', label="under damped")
ax.plot(t, y3[:,0], 'b', label=r"critical damping")
ax.plot(t, y4[:,0], 'g', label="over damped")
ax.legend();

Fourier transform#

Fourier transforms are one of the universal tools in computational physics, which appear over and over again in different contexts. SciPy provides functions for accessing the classic FFTPACK library from NetLib, which is an efficient and well tested FFT library written in FORTRAN. The SciPy API has a few additional convenience functions, but overall the API is closely related to the original FORTRAN library.

To use the fftpack module in a python program, include it using:

from scipy.fftpack import *

To demonstrate how to do a fast Fourier transform with SciPy, let’s look at the FFT of the solution to the damped oscillator from the previous section:

N = len(t)
dt = t[1]-t[0]

# calculate the fast fourier transform
# y2 is the solution to the under-damped oscillator from the previous section
F = fft(y2[:,0])

# calculate the frequencies for the components in F
w = np.fft.fftfreq(N, dt)

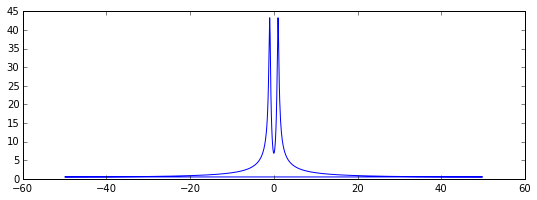

fig, ax = plt.subplots(figsize=(9,3))
ax.plot(w, abs(F));

Since the signal is real, the spectrum is symmetric. We therefore only need to plot the part that corresponds to the postive frequencies. To extract that part of the w and F we can use some of the indexing tricks for NumPy arrays that we saw in Lecture 2:

indices = np.where(w > 0) # select only indices for elements that corresponds to positive frequencies
w_pos = w[indices]
F_pos = F[indices]

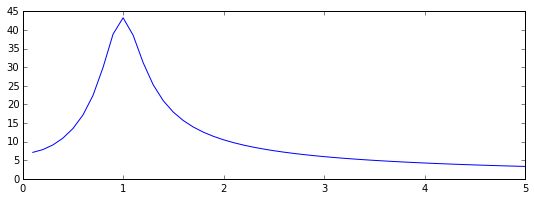

fig, ax = plt.subplots(figsize=(9,3))
ax.plot(w_pos, abs(F_pos))
ax.set_xlim(0, 5);

As expected, we now see a peak in the spectrum that is centered around 1, which is the frequency we used in the damped oscillator example.

Linear algebra#

The linear algebra module contains a lot of matrix related functions, including linear equation solving, eigenvalue solvers, matrix functions (for example matrix-exponentiation), a number of different decompositions (SVD, LU, cholesky), etc.

Detailed documetation is available at: http://docs.scipy.org/doc/scipy/reference/linalg.html

Here we will look at how to use some of these functions:

Linear equation systems#

Linear equation systems on the matrix form

\(A x = b\)

where \(A\) is a matrix and \(x,b\) are vectors can be solved like:

A = np.array([[1,2,7], [4,5,6], [7,8,9]])
b = np.array([1,2,3])

import scipy as sp
x = sp.linalg.solve(A, b)

x

# check
np.dot(A, x) - b

We can also do the same with

\(A X = B\)

where \(A, B, X\) are matrices:

A = np.random.rand(3,3)
B = np.random.rand(3,3)

X = sp.linalg.solve(A, B)

# check
sp.linalg.norm(np.dot(A, X) - B)

Eigenvalues and eigenvectors#

The eigenvalue problem for a matrix \(A\):

\(\displaystyle A v_n = \lambda_n v_n\)

where \(v_n\) is the \(n\)th eigenvector and \(\lambda_n\) is the \(n\)th eigenvalue.

To calculate eigenvalues of a matrix, use the eigvals and for calculating both eigenvalues and eigenvectors, use the function eig:

evals = sp.linalg.eigvals(A)

evals

evals, evecs = sp.linalg.eig(A)

evals

evecs

The eigenvectors corresponding to the \(n\)th eigenvalue (stored in evals[n]) is the \(n\)th column in evecs, i.e., evecs[:,n]. To verify this, let’s try mutiplying eigenvectors with the matrix and compare to the product of the eigenvector and the eigenvalue:

n = 1

sp.linalg.norm(np.dot(A, evecs[:,n]) - evals[n] * evecs[:,n])

There are also more specialized eigensolvers, like the eigh for Hermitian matrices.

Matrix operations#

# the matrix inverse
sp.linalg.inv(A)

# determinant
sp.linalg.det(A)

# norms of various orders
sp.linalg.norm(A, ord=2), sp.linalg.norm(A, ord=np.Inf)

Optimization#

Optimization (finding minima or maxima of a function) is a large field in mathematics, and optimization of complicated functions or in many variables can be rather involved. Here we will only look at a few very simple cases. For a more detailed introduction to optimization with SciPy see: http://scipy-lectures.github.com/advanced/mathematical_optimization/index.html

To use the optimization module in scipy first include the optimize module:

from scipy import optimize

Finding a minima#

Let’s first look at how to find the minima of a simple function of a single variable:

def f(x):
    return 4*x**3 + (x-2)**2 + x**4

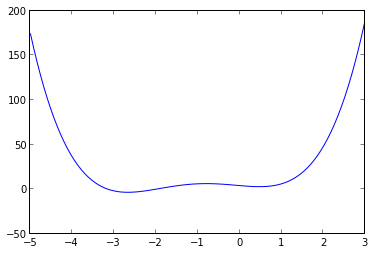

fig, ax  = subplots()
x = linspace(-5, 3, 100)
ax.plot(x, f(x));

We can use the fmin_bfgs function to find the minima of a function:

x_min = optimize.fmin_bfgs(f, -2)
x_min

optimize.fmin_bfgs(f, 0.5)

We can also use the brent or fminbound functions. They have a bit different syntax and use different algorithms.

optimize.brent(f)

optimize.fminbound(f, -4, 2)

Finding a solution to a function#

To find the root for a function of the form \(f(x) = 0\) we can use the fsolve function. It requires an initial guess:

omega_c = 3.0
def f(omega):
    # a transcendental equation: resonance frequencies of a low-Q SQUID terminated microwave resonator
    return tan(2*pi*omega) - omega_c/omega

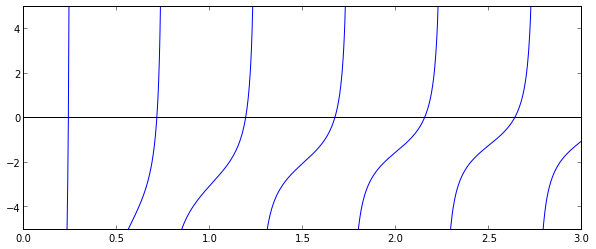

fig, ax  = subplots(figsize=(10,4))
x = linspace(0, 3, 1000)
y = f(x)
mask = where(abs(y) > 50)
x[mask] = y[mask] = NaN # get rid of vertical line when the function flip sign
ax.plot(x, y)
ax.plot([0, 3], [0, 0], 'k')
ax.set_ylim(-5,5);

optimize.fsolve(f, 0.1)

optimize.fsolve(f, 0.6)

optimize.fsolve(f, 1.1)

Interpolation#

Interpolation is simple and convenient in scipy: The interp1d function, when given arrays describing X and Y data, returns and object that behaves like a function that can be called for an arbitrary value of x (in the range covered by X), and it returns the corresponding interpolated y value:

from scipy.interpolate import *

def f(x):
    return sin(x)

n = arange(0, 10)
x = linspace(0, 9, 100)

y_meas = f(n) + 0.1 * randn(len(n)) # simulate measurement with noise
y_real = f(x)

linear_interpolation = interp1d(n, y_meas)
y_interp1 = linear_interpolation(x)

cubic_interpolation = interp1d(n, y_meas, kind='cubic')
y_interp2 = cubic_interpolation(x)

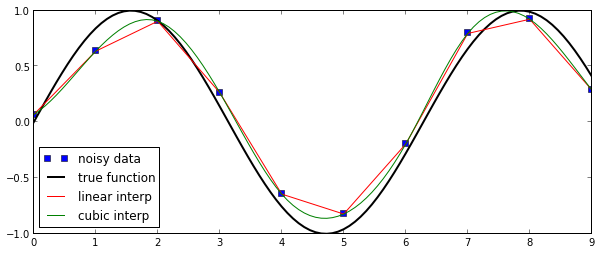

fig, ax = subplots(figsize=(10,4))
ax.plot(n, y_meas, 'bs', label='noisy data')
ax.plot(x, y_real, 'k', lw=2, label='true function')
ax.plot(x, y_interp1, 'r', label='linear interp')
ax.plot(x, y_interp2, 'g', label='cubic interp')
ax.legend(loc=3);

Statistics#

The scipy.stats module contains a large number of statistical distributions, statistical functions and tests. For a complete documentation of its features, see http://docs.scipy.org/doc/scipy/reference/stats.html.

There is also a very powerful python package for statistical modelling called statsmodels. See http://statsmodels.sourceforge.net for more details.

from scipy import stats

# create a (discreet) random variable with poissionian distribution

X = stats.poisson(3.5) # photon distribution for a coherent state with n=3.5 photons

n = arange(0,15)

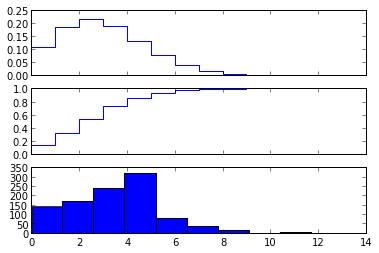

fig, axes = subplots(3,1, sharex=True)

# plot the probability mass function (PMF)
axes[0].step(n, X.pmf(n))

# plot the commulative distribution function (CDF)
axes[1].step(n, X.cdf(n))

# plot histogram of 1000 random realizations of the stochastic variable X
axes[2].hist(X.rvs(size=1000));

# create a (continous) random variable with normal distribution
Y = stats.norm()

x = linspace(-5,5,100)

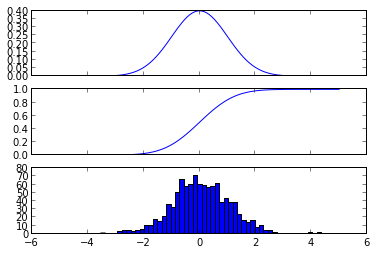

fig, axes = subplots(3,1, sharex=True)

# plot the probability distribution function (PDF)
axes[0].plot(x, Y.pdf(x))

# plot the commulative distributin function (CDF)
axes[1].plot(x, Y.cdf(x));

# plot histogram of 1000 random realizations of the stochastic variable Y
axes[2].hist(Y.rvs(size=1000), bins=50);

Statistics:

X.mean(), X.std(), X.var() # poission distribution

Y.mean(), Y.std(), Y.var() # normal distribution

Statistical tests#

Test if two sets of (independent) random data comes from the same distribution:

t_statistic, p_value = stats.ttest_ind(X.rvs(size=1000), X.rvs(size=1000))

print "t-statistic =", t_statistic
print "p-value =", p_value

Since the p value is very large we cannot reject the hypothesis that the two sets of random data have different means.

To test if the mean of a single sample of data has mean 0.1 (the true mean is 0.0):

stats.ttest_1samp(Y.rvs(size=1000), 0.1)

Low p-value means that we can reject the hypothesis that the mean of Y is 0.1.

Y.mean()

stats.ttest_1samp(Y.rvs(size=1000), Y.mean())
